bltspice_mcp

Create any LTSpice circuit using LLMs!

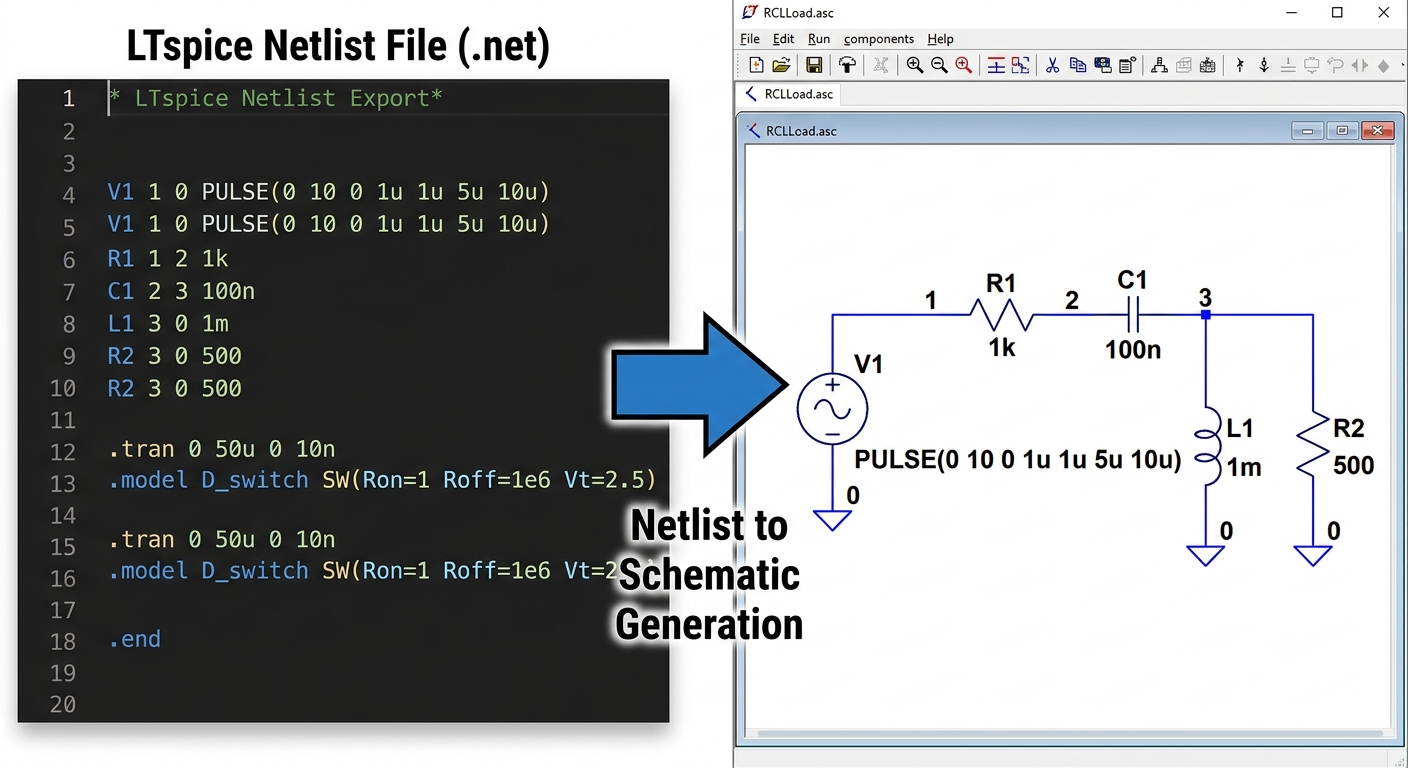

Converts ltspice netlist .net to ltspice .asc file format!

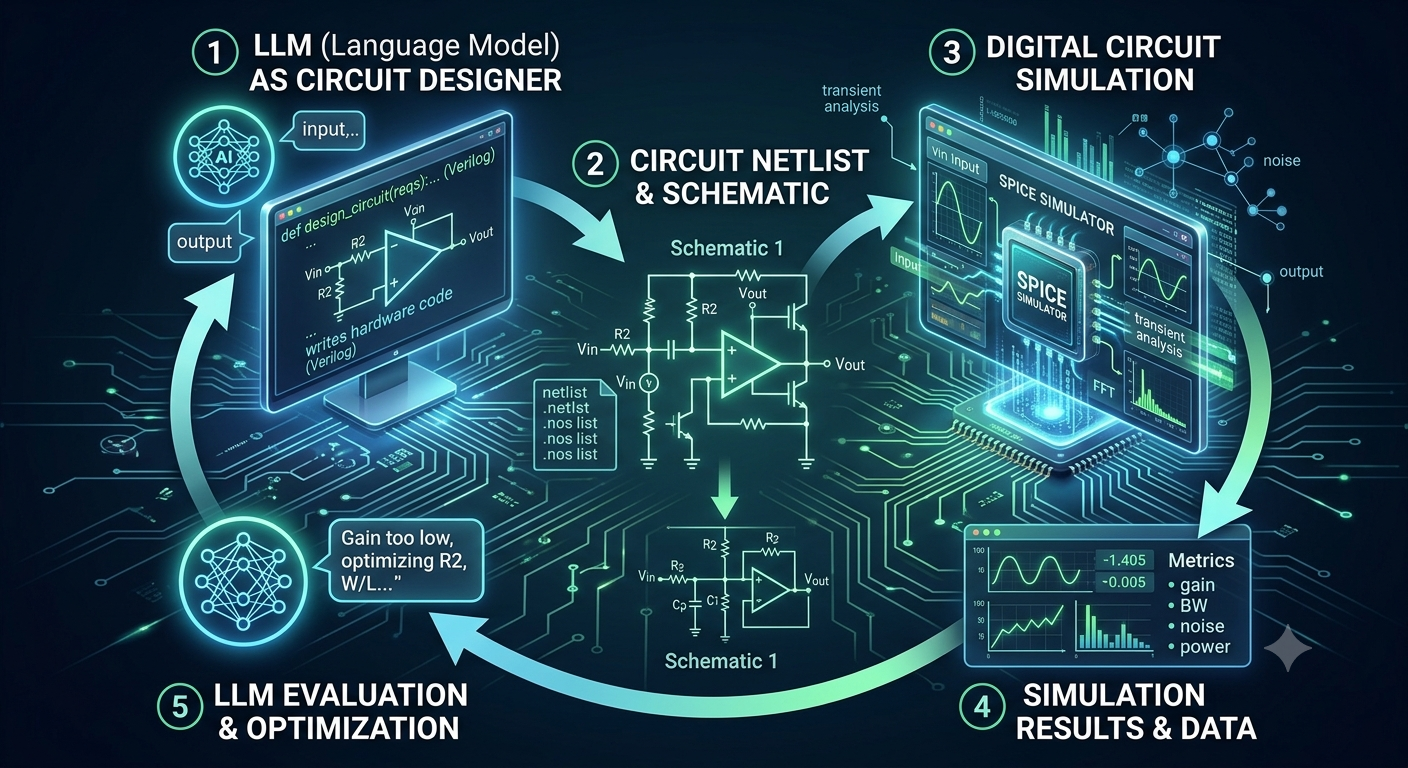

REALTIME LTSpice simulation and export to .csv!

Project Layout

• `src/bltspice_mcp/` server source code
• `tests/unit/` unit tests
• `tests/integration/` integration tests
• `testfiles/` copied example assets (`.asc/.log/.raw/.asy/.txt/.net`)
• `examples/codex/` and `examples/opencode/` MCP call recipes for LLM agents
• `config.json` server configuration
• `bltspice_mcp_for_LLM.md` LLM tool-calling reference

Requirements

• Python 3.11+
• LTspice installed
• Linux/macOS with Wine for Windows LTspice binary

Quick Setup

python3 -m venv .venv
. .venv/bin/activate
pip install -U pip
pip install "PyLTSpice>=6.0.1" "fastmcp>=3.4.4" "electronics-design>=0.1.9" pytest pytest-asyncio
pip install -e .

Configuration

`config.json` (absolute paths required):

{
  "mcp_server_name": "My PyLTSpice MCP Server",
  "mcp_server_url": "http://localhost:7543",
  "wine_path": "/usr/bin/wine",
  "ltspice_path": "/home/brosnan/.wine/drive_c/Program Files/ADI/LTspice/LTspice.exe",
  "enable_extra_tools": true,
  "timeout": 600,
  "convert_settings": {
    "ltspice_windows_path": "C:\\users\\brosnan\\AppData\\Local\\LTspice\\",
    "ltspice_wine_path": "~/.wine/drive_c/users/brosnan/AppData/Local/LTspice/",
    "custom_search_paths": ["./valid_asy/"],
    "minimum_dist": 32,
    "wire_pin_out_dist": 16,
    "grid_size": 16,
    "autoplace_iter": 12,
    "ltspice_version": 4.1,
    "voltage_must_have_dc": true
  }
}

`convert_settings` is optional. Each setting is optional and receives a default

when omitted. Relative `custom_search_paths` are resolved from the server

project root; Windows paths remain in Windows syntax for Wine-based conversion.

`mcp_server_url` supports `http://`, `https://`, and `stdio://`.

Run Server

Stdio transport:

. .venv/bin/activate
python -m bltspice_mcp --config /home/brosnan/bltspice_mcp/bltspice_mcp/config.json

MCP Client Config Examples

OpenCode

{
  "mcpServers": {
    "bltspice_mcp": {
      "command": "/home/brosnan/bltspice_mcp/bltspice_mcp/.venv/bin/python",
      "args": [
        "-m",
        "bltspice_mcp",
        "--config",
        "/home/brosnan/bltspice_mcp/bltspice_mcp/config.json"
      ]
    }
  }
}

Claude Code

{
  "mcpServers": {
    "bltspice_mcp": {
      "command": "/home/brosnan/bltspice_mcp/bltspice_mcp/.venv/bin/python",
      "args": [
        "-m",
        "bltspice_mcp",
        "--config",
        "/home/brosnan/bltspice_mcp/bltspice_mcp/config.json"
      ]
    }
  }
}

OpenAI Codex

{
  "mcp_servers": {
    "bltspice_mcp": {
      "command": "/home/brosnan/bltspice_mcp/bltspice_mcp/.venv/bin/python",
      "args": [
        "-m",
        "bltspice_mcp",
        "--config",
        "/home/brosnan/bltspice_mcp/bltspice_mcp/config.json"
      ]
    }
  }
}

Response Contract

Server statuses:

• `performing LTspice operation in progress`
• `LTspice operation completed!`
• `invalid input!`
• `file not found!`
• `unsupported file type!`
• `simulator not configured!`
• `simulation failed!`
• `parser failed!`
• `LTspice operation timed out!`
• `internal error`

Each payload includes `operation`. Successful responses include `output`, and optionally `output_obj_name`.

Session-isolated `stop_reset`

Each MCP session owns a dedicated OS worker process group containing its

dispatcher registry, PyLTSpice `RunTask` threads, simulator subprocesses, and

callback children. `stop_reset` interrupts that session immediately with

`SIGKILL`, clears operations that were already queued for it, and discards its

object registry. It does not signal worker groups belonging to other MCP

sessions. Because operating systems apply `SIGKILL` to processes rather than

individual threads, killing the session worker process terminates all of its

threads atomically.

The immediate response is the normal in-progress payload. Poll `execute_status`

until both `status` is complete and `operation` is `stop_reset`. Its output

includes `worker_process_killed`, `processes_killed`,

`threads_terminated_with_processes`, and `queued_operations_killed`. Work

submitted after the reset call waits until the reset completes and runs in a

fresh session worker.

`traces_to_csv` via `execute`

Convert selected traces from a loaded `RawRead` object into one CSV per wave/step.

Inputs:

• `object_name`: name of a stored `RawRead` object
• `trace_refs`: array of trace names (any length), for example `["V(opamp_input)", "V(opamp_output)"]`
• `output_files`:
  • string prefix/path, example `./sim_wave_` -> writes `./sim_wave_0.csv`, `./sim_wave_1.csv`, ...
  • or array of explicit `.csv` paths with one entry per wave

Example MCP call:

{"tool":"execute","arguments":{"api_name":"traces_to_csv","inputs":{"object_name":"raw","trace_refs":["V(opamp_input)","V(opamp_output)"],"output_files":"./sim_wave_"}}}

LTspice schematic conversion via `execute`

The following `electronics-design` APIs are available through `execute`:

`is_valid_ltspice_netlist_file` and `ltspice_netlist_to_asc`.

`ltspice_netlist_to_asc` receives the configured `convert_settings` automatically.

A request may include an `inputs.convert_settings` object to override individual

values for that call. `is_valid_ltspice_netlist_file` only requires its filepath.

`voltage_must_have_dc` must be a JSON boolean and is passed to

`ltspice_netlist_to_asc` inside `convert_settings`.

`run_ltspice_to_csv.py` Equivalent MCP Flow

Equivalent artifacts are included for the op-amp example workflow:

• netlist fixture: `/home/brosnan/bltspice_mcp/bltspice_mcp/testfiles/opampdouble.net`
• Codex recipe: `/home/brosnan/bltspice_mcp/bltspice_mcp/examples/codex/run_ltspice_to_csv.md`
• OpenCode recipe: `/home/brosnan/bltspice_mcp/bltspice_mcp/examples/opencode/run_ltspice_to_csv.md`
• integration test: `/home/brosnan/bltspice_mcp/bltspice_mcp/tests/integration/test_run_ltspice_to_csv_via_mcp.py`

Integration Coverage

Integration tests now include:

• Core MCP flow test (`runtime_info`, `execute`, `execute_status`, `stop_reset`)
• Mapping coverage for the checked-in PyLTSpice example-name manifest

(`tests/fixtures/pyltspice_example_manifest.json`)

• Mapping coverage for the checked-in README example-name list in that manifest
• End-to-end `run_ltspice_to_csv.py` style MCP workflow for `opampdouble.net`

Run Tests (One By One)

. .venv/bin/activate
pytest -q tests/unit/test_responses.py
pytest -q tests/unit/test_config.py
pytest -q tests/unit/test_dispatcher.py
pytest -q tests/unit/test_session.py
pytest -q tests/integration/test_mcp_server_integration.py
pytest -q tests/integration/test_examples_via_mcp.py
pytest -q tests/integration/test_readme_examples_via_mcp.py
pytest -q tests/integration/test_run_ltspice_to_csv_via_mcp.py

Notes

• `runtime_info` is immediate and does not require `execute_status` polling.
• Server queues `execute` in FIFO per MCP session; `stop_reset` interrupts only

that session's worker process group and clears its existing queue.

• `execute_status` polls the latest status for queued operations.
• Completion/error notifications are emitted through MCP notification channel.
